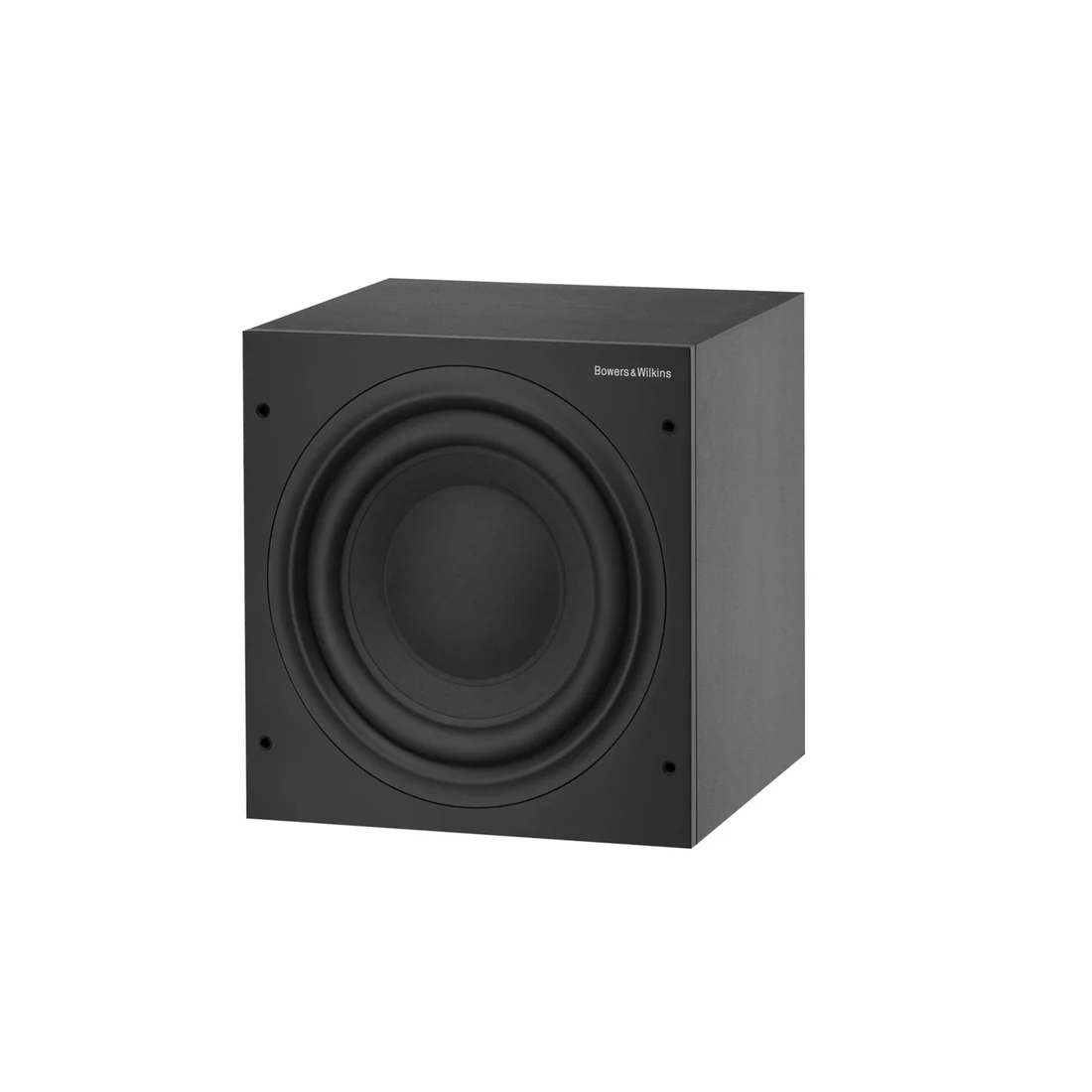

Avatron announces the availability of Bowers & Wilkins ASW610XP 500 Watts Subwoofer. ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump to a hi-fi or home theatre system for larger rooms.
Key Features
- Audiophile-grade powered subwoofer for home theatre systems
- Sports a long-throw 10" Kevlar® cone woofer in a front-firing placement
- Efficient & powerful 500 Watts Class D amplifier built-in
- Robust closed MDF wood box with a vinyl wrap built for the long run
- Stereo Line In (RCA Phono), Speaker In (Binding post), & 12v trigger (3.5mm jack) inputs
- Volume controls, low-pass filter frequency, bass roll-off alignment, & phase switch
- Intuitive auto sense on/standby feature for power saving
Benefits of Bowers & Wilkins ASW610XP 500 Watts Subwoofer:
Tuned For Powerful Bass
A big driver isn't enough; ASW610XP sports a 10" front-firing woofer that combines paper pulp, Aramid fibre and resin for stiffness and accuracy.
All the Power You Will Need
ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation. You can use the ASW610XP as part of a high-quality Bowers & Wilkins home theatre or stereo music system.
| Specifications
| Description |
Active closed-box subwoofer system |
| Features |
Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
|
| Drive Units |
ø250mm (10 in) paper/Aramid fibre cone long-throw
|
| Frequency Range |
-6dB at 18Hz and 25/140Hz adjustable (EQ at A) |
| Frequency Response |
±3dB 25Hz – 40/140Hz adjustable (EQ at A) |
| Bass extension |
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C) |
| Amplifier power |
Power output: 500W |
| Rated power consumption |
98W / 1W standby |
| Input Impedance |
33kΩ |
| Nominal impedance |
8Ω (minimum 4.3Ω) |
| Signal/noise |
>90dB |
| Inputs |
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency |
| Dimensions |
Height: 325mm (12.8in) not including feet or spikes
337mm (13.3in) including feet
353mm (13.9in) including spikes
Width: 325mm (12.8in)
Depth: 348mm (13.68in) not including grilles
375mm (14.8in) including grilles and controls
|
| Weight |
18.65kg (41.12 lb) |
| Cabinet Finishes |
Black, White |
| Grille Finishes |
Black, Grey |
