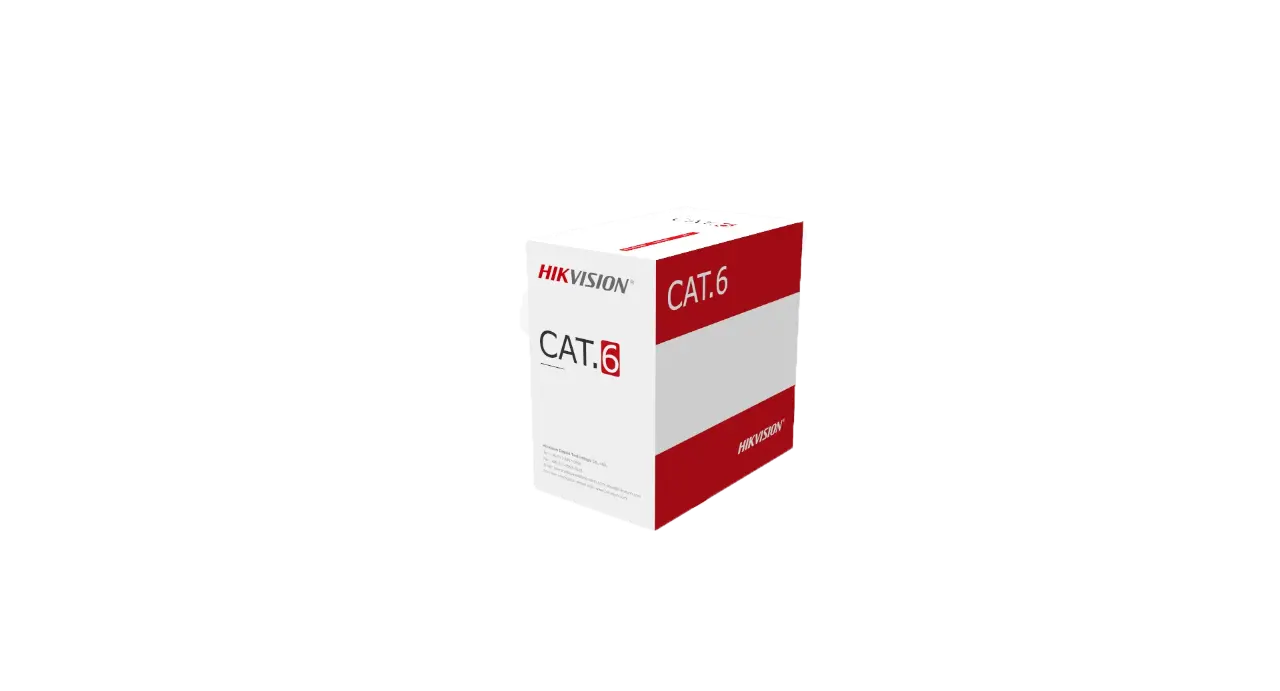

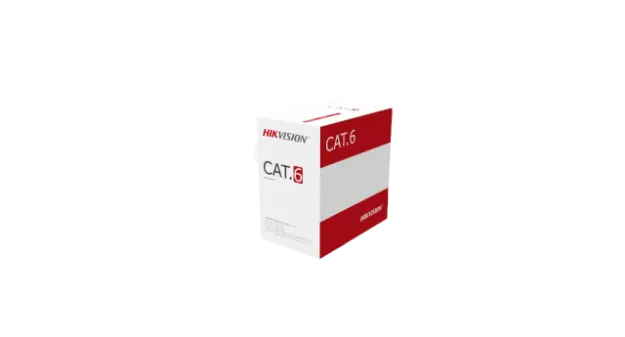

Hikvision 4Pairs CAT6 UTP Network Cable - 305 Meter CCA,0.565 mm

Be the first to review this product
Features: 305 m cost-effective CAT6 CCA network cable | Full diameter and full length | Quality verified by Fluke test | Guaranteed long PoE transmission distance | Warranty: 1 Year.
Call for pricing
Manufacturer: Hikvision
SKU: HV-CAT6-CAB-DS-1LN6U-W/CCA
Delivery date 1 week
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Download Technical Datasheet
+ -

| Specifications


General
 Core Color 1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,
 Packing Carton
 Carton Dimension 41x41x24cm
 Packing Length (305±1.5)m
 Rip-Cord Yes
 Drain Wire No
 Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
 Electrical Characteristics (20℃) 1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,
 Conductor
 Material CCA（Copper content：27%）
 Nom.O.D.(Mm) 0.585±0.01
 Insulation
 Material Solid HDPE
 Diameter 1.05±0.05mm
 Sheath
 Thickness 0.50±0.05 mm
 External O.D. 6.0±0.30 mm
 Surface Clean, Frap, Satiation
 Material FR-PVC(complies RoHS)
 Color White RAL9003
 Surface Printing
 Letter Height 2.5±0.2mm
 Color Black
 Print Error & Space ≤±0.5%，1m


Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
*
*
*

| Specifications


General
 Core Color 1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,
 Packing Carton
 Carton Dimension 41x41x24cm
 Packing Length (305±1.5)m
 Rip-Cord Yes
 Drain Wire No
 Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
 Electrical Characteristics (20℃) 1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,
 Conductor
 Material CCA（Copper content：27%）
 Nom.O.D.(Mm) 0.585±0.01
 Insulation
 Material Solid HDPE
 Diameter 1.05±0.05mm
 Sheath
 Thickness 0.50±0.05 mm
 External O.D. 6.0±0.30 mm
 Surface Clean, Frap, Satiation
 Material FR-PVC(complies RoHS)
 Color White RAL9003
 Surface Printing
 Letter Height 2.5±0.2mm
 Color Black
 Print Error & Space ≤±0.5%，1m
