Sorry - this product is no longer available

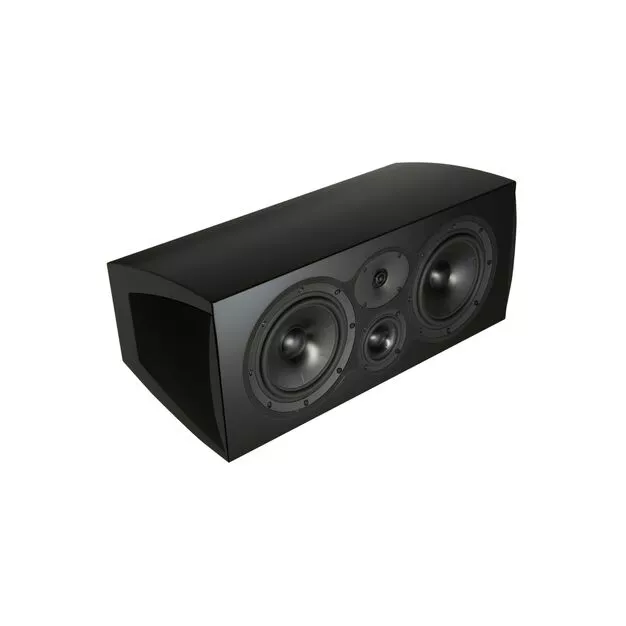

Revel, 3-Way Dual, 8" Centre Channel Loudspeaker

Features: Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation | Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance | New waveguides provide consistent sound over a wide listening area | Enclosures created by Italian luxury cabinetmakers | Fluid-model port designs keep distortion low | Advanced crossovers optimize timbre accuracy both on axis and throughout the room | Warranty: 1 Year.
Manufacturer: Revel
SKU: REV-CCS-C208
Delivery date 1 week
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

| Description



Revel C208 low-frequency transducers and midrange transducer feature distortion reduction mechanisms that stabilize the flux field during operation, assuring low distortion even at high listening volumes. These precision transducers utilize ribbed aluminum cones for ideal piston-like behavior that eliminates a major source of resonances that are clearly audible in most other loudspeakers. Their cast aluminum frames eliminate another source of resonances that is common in many lesser-quality loudspeakers.



 The C208 tweeter has been created around a newly-designed motor and dome assembly that sets a new standard of transparency for the Performa3 category. The tweeter’s integrated acoustic lens waveguide is based on a breakthrough mathematical approach that accurately matches the tweeter’s dispersion to that of the midrange transducer in the crossover region. This gives the loudspeaker very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeter’s dispersion at higher frequencies.



| Specifications



 Height  11.8" (30 cm)
 Width  28.9" (73.5 cm)
 Depth  13.8" (35 cm)
 Weight  52 lb (23 kg)
 Crossover Frequencies  375 Hz, 2450 kHz
 Enclosure Type  Sealed
 Finishes  Piano Black or High Gloss Walnut
 High-frequency Driver Components  1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide
 Nominal Impedance  8 Ohms
 Input Connections  Dual Sets of Binding Posts
 Low Frequency Extension  -10dB@34Hz -6dB@41Hz -3dB@50Hz
 Low-frequency Driver Components  Dual 8” (20 cm) Aluminum Cone, Cast-frame Woofers
 Mid-frequency Driver Components  4" (10 cm) Aluminum Cone, Cast-frame Midrange
 Recommended Amplifier Power  50-350
 Sensitivity  89dB
